INDUSTRIAL CONVEYOR BELTS
Steel construction belts from National Element are especially adaptable to conveying heavy, rough or sharp material. An assembled belt consists of hinged links, side wings, tubes, thru pins and dual strands of roller chain. The hinged links are assembled in horizontal rows by passing the tube through the hinges. The thru pins are inserted into the tube and fastened into the side chains thus supporting the links and causing the chain to take all the tension.
- Plain pulley, snubbed pulley, pressure roll, tandem and tractor drives

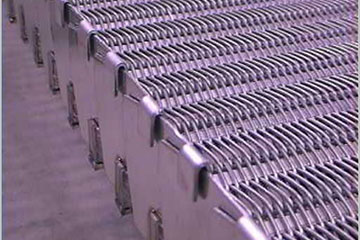

- U-Link, Hinge plate and Wire mesh
- Piano hinge available in light, medium, medium-heavy and heavy depending on allowable belt pull
- Operate in fluids, oils or solvents
- Side wings mig welded to the outer links
- Full variety of pins available light duty, medium, medium-heavy and heavy-duty belts
Steel bushings = 15-18% coefficient of friction
Nylatron bearings = 10-13% coefficient of friction
Roller bearings= 4-5% coefficient of friction
Standard plain steel links precision welded in widths of :
24″ ( 1/8” thick flat top and piano hinge plate belts)
6″ (3/16” belt)
12” (¼ belt)
Hinges formed in 1-1/2″ – 3″ increments on the link to allow special belt widths of the same 1-1/2″ increment.
Side wings interlocked and afford continuous overlapping through bends and over the sprockets. Mig welding to the belt prevents thin pieces of material from getting under the wing.
1/8″ thick x 1-1/2″ for 2-1/2″ pitch
1/8″ thick x 2-1/2″ for 4″ pitch
3/16″ thick x 3″ or 4″ for 6″ pitch
3/16″ thick x 4″ or 6″ for 9″ pitch
The tubes are .760″ I.D. x .970″ O.D. steel running through the hinges for the complete belt width and rotates on the thru pin for a better bearing area. Maintenance is easy because it is not necessary to disconnect the belt at a hinge point to remove a pin. It is the tube that holds the belt together.
1/2″ dia. thru pin with milled ends and 5/32″ “S” pin
3/4″ dia. pin with milled ends and 1/4″ cotter pin
heavy-duty belt pin with milled and threaded ends and 3/4″ lock nut
3/4″ dia. split pins for easy maintenance in tight spaces
Pin, tube and hinge provides a 1-1/2″ thick heavy-duty joint
- Baled scrap
- Loose metal scrap
- Metal chips
- Waste Paper
- Municipal Waste
